Built on a foundation of meticulously tuned tones and textures that combine to encapsulate the rich, atmospheric essence and grand sense of space that have been the hallmark of countless classic tracks
Highly customizable delay setup, offering control over not only the tempo and number of echoes—Delay and Regen controls—but also their rhythm
Delay, Mod, Voice, Regen, Division & Mix controls
Echo 2 & Trails buttons
Delay : Adjusts tempo of echoes
Mod : Adjusts intensity of modulation
Voice : Adjusts mix of -1, +1, and +2 octave signal blend
Regen : Sets number of echoes
Division : Selects ratio of primary echoes to the tempo (¼ note, dotted ⅛ note, ⅛ note, ⅛ note triplet, double delay with an ⅛ note, dotted ⅛ note)
Mix : Adjusts overall volume of effect signal

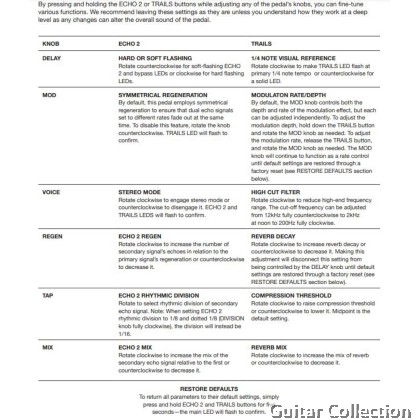

Echo 2 : Adds secondary echoes at ¼ note tempo (illuminates blue when on)
Trails : Toggles effect Trails mode on/off (illuminates red when on)

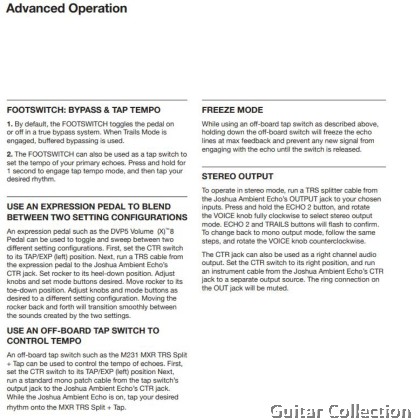

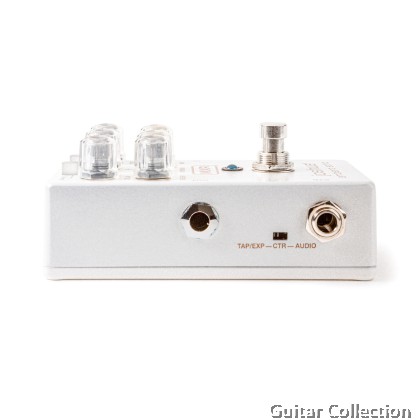

CTR jack : Allows an expression pedal to control settings or a tap switch to set tempo of echoes

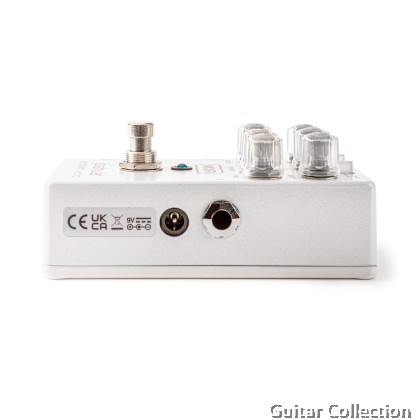

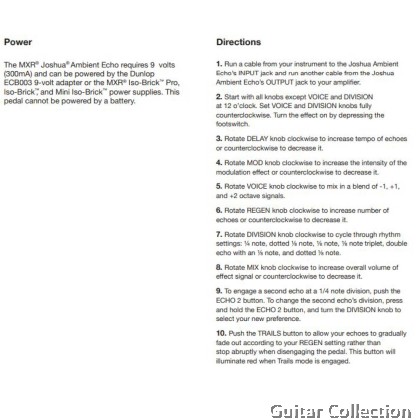

This pedal requires 9 volts (300mA) and can be powered by the Dunlop ECB003 9-volt adapter or the MXR Iso-Brick Pro, Iso-Brick, and Mini Iso-Brick power supplies
This pedal cannot be powered by a battery.

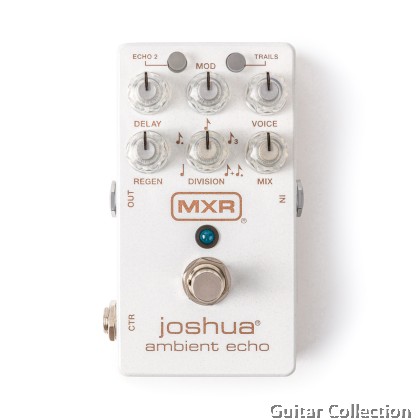

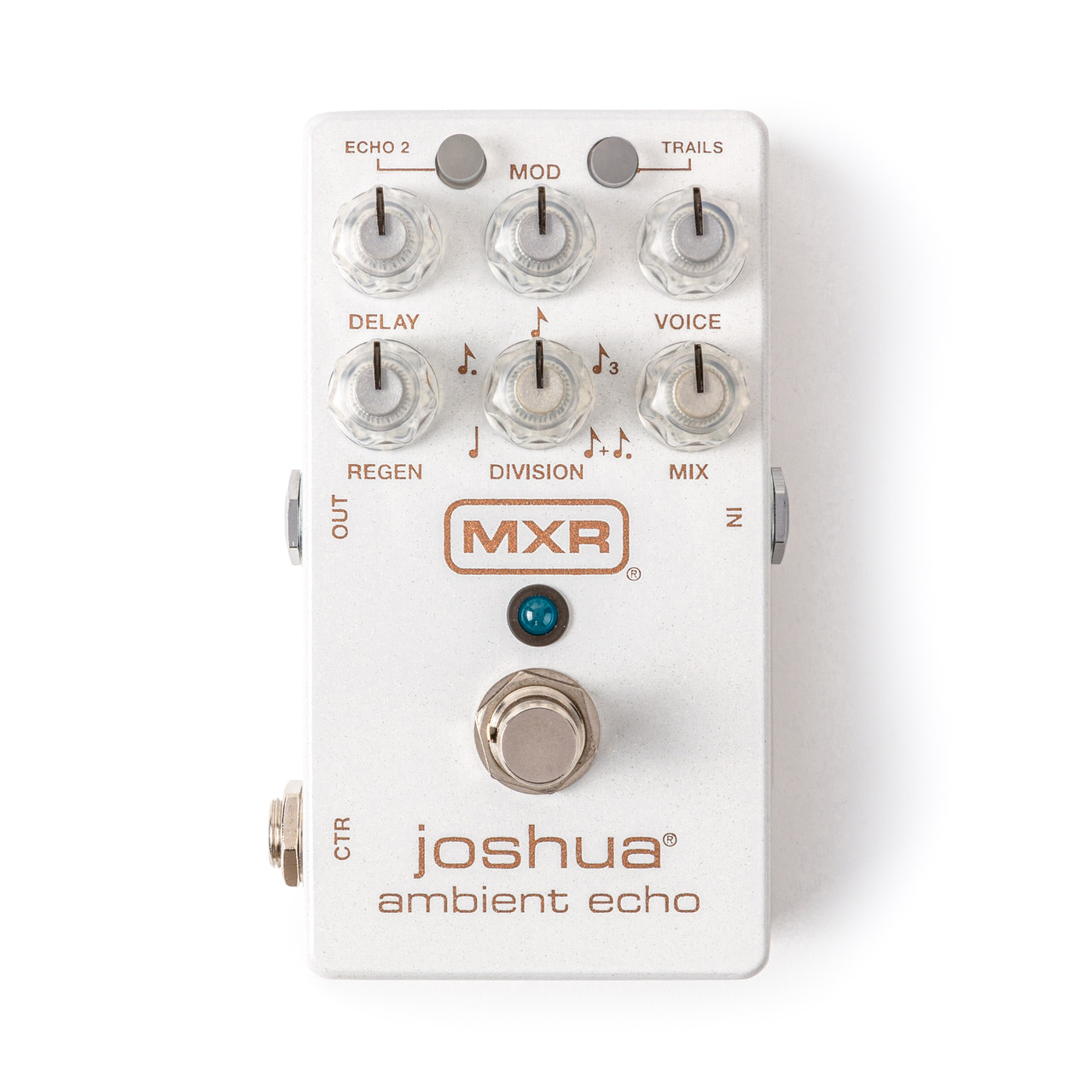

MXR® JOSHUA® AMBIENT ECHO
The MXR Joshua Ambient Echo is your ticket to iconic sonic sanctuaries, featuring a foundation of carefully concocted tones and textures, highly customizable delay, and other features to help you craft soundscapes worthy of tonal trips out of the ’60s and ’70s and ethereal ambience from the ’80s.
Built on a foundation of meticulously tuned tones and textures that combine to encapsulate the rich, atmospheric essence and grand sense of space that have been the hallmark of countless classic tracks
Highly customizable delay setup, offering control over not only the tempo and number of echoes—Delay and Regen controls—but also their rhythm

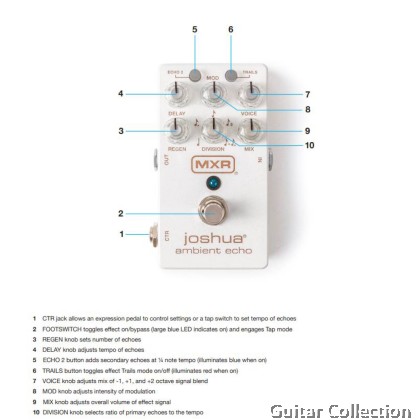

Delay, Mod, Voice, Regen, Division & Mix controls
Echo 2 & Trails buttons
Delay : Adjusts tempo of echoes
Mod : Adjusts intensity of modulation
Voice : Adjusts mix of -1, +1, and +2 octave signal blend
Regen : Sets number of echoes
Division : Selects ratio of primary echoes to the tempo (¼ note, dotted ⅛ note, ⅛ note, ⅛ note triplet, double delay with an ⅛ note, dotted ⅛ note)
Mix : Adjusts overall volume of effect signal
Echo 2 : Adds secondary echoes at ¼ note tempo (illuminates blue when on)
Trails : Toggles effect Trails mode on/off (illuminates red when on)
CTR jack : Allows an expression pedal to control settings or a tap switch to set tempo of echoes
This pedal requires 9 volts (300mA) and can be powered by the Dunlop ECB003 9-volt adapter or the MXR Iso-Brick Pro, Iso-Brick, and Mini Iso-Brick power supplies
