Description
Highlight
- Classic "octave up" fuzz effect with modern features.
- Status LED, true bypass switching, 9 volt power jack, pedalboard-friendly housing .
- Iconic art by Gered Mankowitz

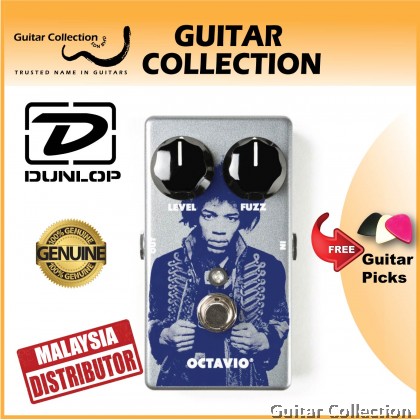

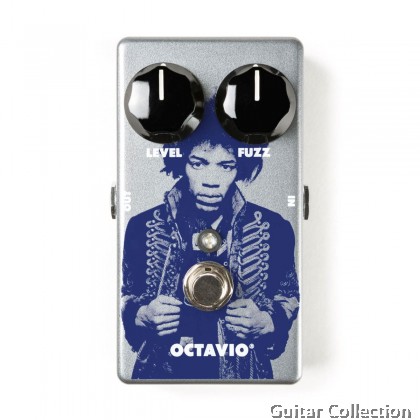

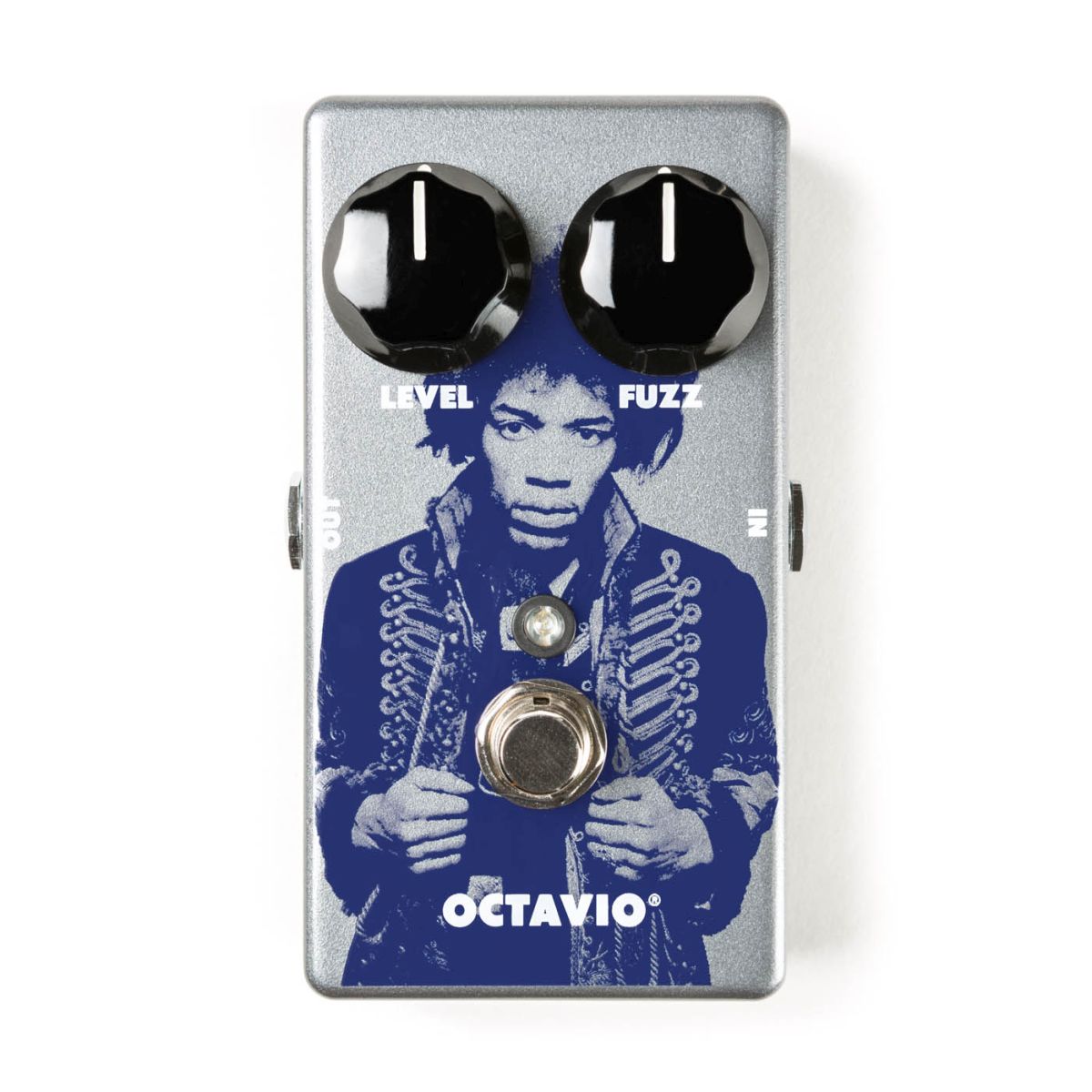

Jimi Hendrix™ Octavio Fuzz
JHM6
This pedal provides the classic "octave up" fuzz effect that Jimi Hendrix made famous, with modern features such as a status LED, true-bypass switching, a 9-volt power jack, and a pedalboard-friendly housing.
- Classic "octave up" fuzz effect with modern features.
- Status LED, true bypass switching, 9 volt power jack, pedalboard-friendly housing .
- Iconic art by Gered Mankowitz
THE LONG STORY.
Sporting the exact same circuit found in Jimi's original cheese wedge Octavio® Fuzz, this pedal not only provides the classic octave up effect that Hendrix utilized so potently on tracks such as One Rainy Wish, and Purple Haze, but its amazingly touch-sensitive response will inspire you to venture into uncharted sonic territory. This modern rendering of a classic one-of-a-kind effect features a status LED, true-bypass switching, a 9-volt power jack, and a much smaller Phase 90-sized enclosure emblazoned with colorful, iconic art from legendary rock artist Gered Mankowitz.
POWER
The Jimi Hendrix™ Octavio Fuzz can be powered by one 9-volt battery (remove bottom plate to install), an adapter such as the ECB003, or the MXR DC Brick™ and Iso-Brick™ power supplies.
SPECIFICATIONS
Input Impedance
- Max Fuzz ~20kΩ @ 1kHz
- Min Fuzz ~370kΩ @ 1kHz
- Max Input -6dBv
Output Impedance
- Max Volume 1.5kΩ
- Mid Volume 50kΩ
- Max Output 1.7 Vpp
- Gain Range 8dB to 37dB
- Bypass True Hardwire
- Current Draw 5.9mA
- Power Requirements 9 volts DC
*Drive stage adjusted maximum CW
**With all controls at mid position
Reviews (0)
view all
back
What's in the box
1 × Jim Dunlop JIMI HENDRIX™ OCTAVIO® FUZZ JHM6
