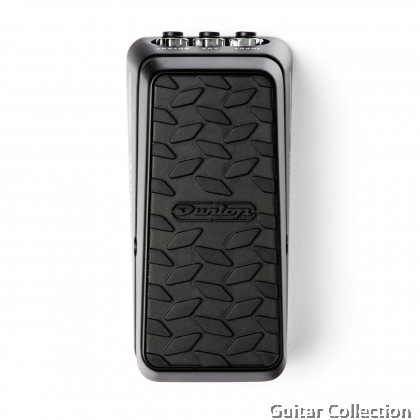

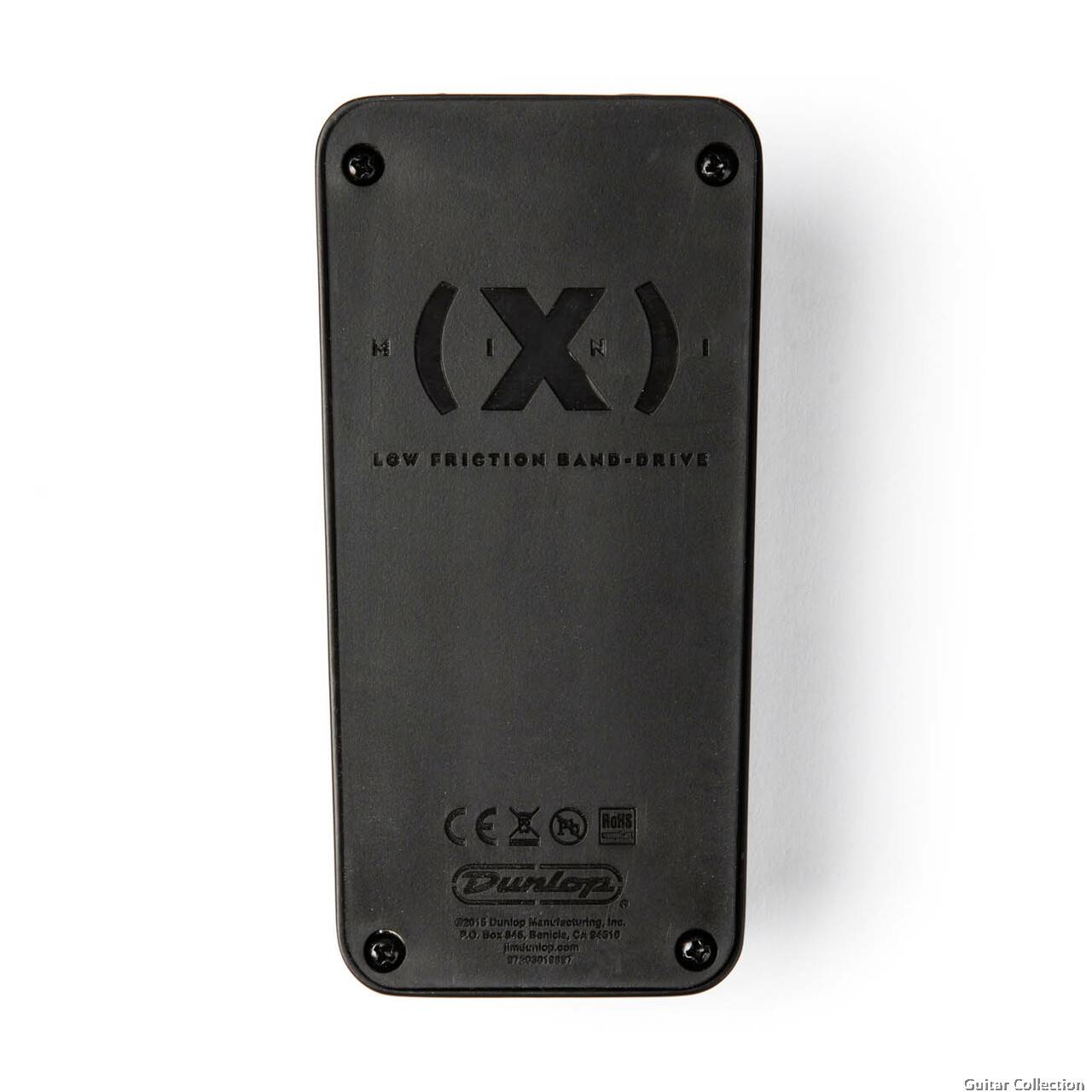

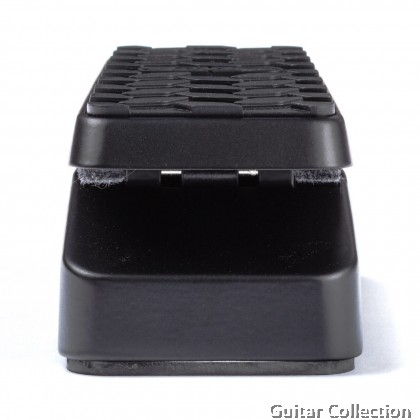

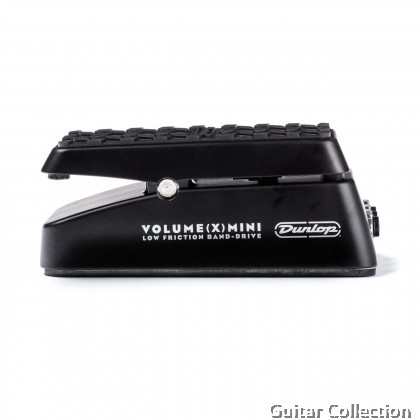

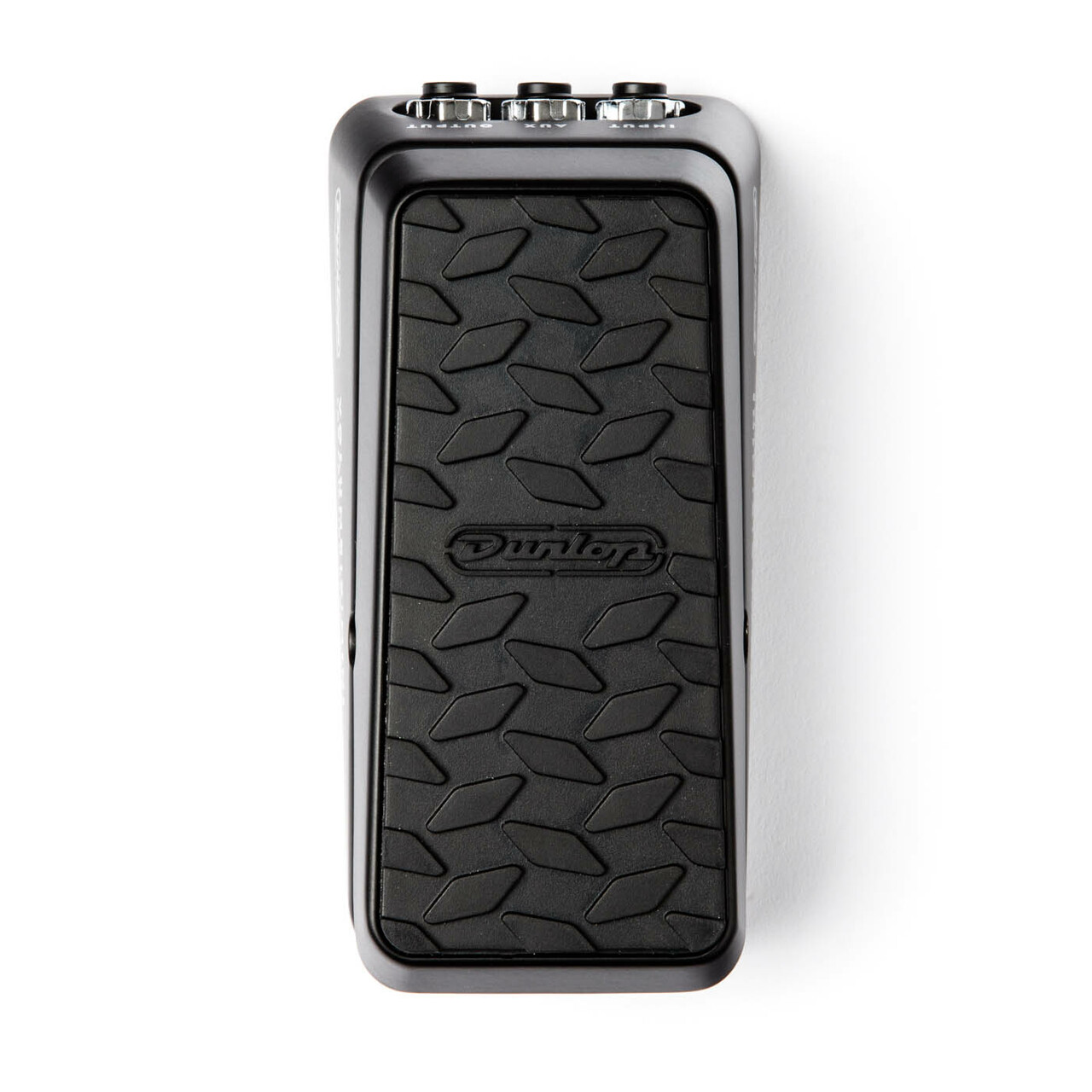

Jim Dunlop DVP4 Volume (X) Mini | Volume Guitar Effect Pedal

RM646.00 RM718.00

Jim Dunlop DVP4 Volume (X) Mini | Volume Guitar Effect Pedal

Price	RM646.00 RM718.00
Product SKU	DVP4
Brand	Jim Dunlop
Availability	3

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Half the size of the DVP3 with the same function and durability
Incredibly smooth volume swells or control your effect pedal parameters
Solidly-built compact pedalboard-friendly housing and ready for the road with a lightweight chassis, aggressive non-slip tread
Patent-pending Low Friction Band-Drive for a smooth range of motion without the fear of breakage or change in feel or range
As an expression pedal, you can use the internal pot to set the minimum level of the parameter you're controlling with the rocker
If you want to reverse the function of the heel-down and toe-down positions, the DVP3 has an internal switch that allows you to do so
Fully adjustable rocker tension, for maximum comfort and precision
AUX output for switchable tuner / expression functions (toggled with a switch inside the pedal)



VOLUME (X)™ MINI PEDAL

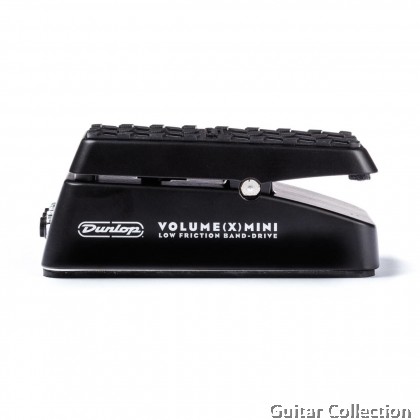

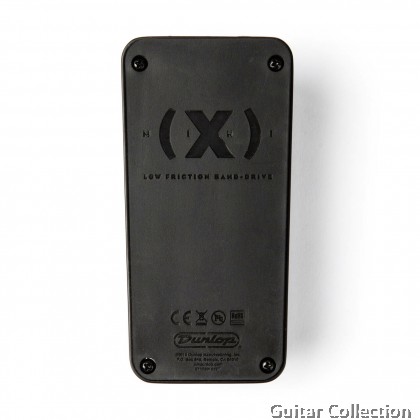

The Volume (X) Mini Pedal controls volume and FX parameters without crowding your pedalboard, featuring a lightweight aluminum chassis, aggressive non-slip tread, and our patented Low Friction Band-Drive for a smooth range of motion and consistent, reliable performance. For maximum comfort and precision, the DVP4's rocker tension is fully adjustable.

Half the size of the DVP3 with the same function and durability
Incredibly smooth volume swells or control your effect pedal parameters
Solidly-built compact pedalboard-friendly housing and ready for the road with a lightweight chassis, aggressive non-slip tread
Patent-pending Low Friction Band-Drive for a smooth range of motion without the fear of breakage or change in feel or range
As an expression pedal, you can use the internal pot to set the minimum level of the parameter you're controlling with the rocker
If you want to reverse the function of the heel-down and toe-down positions, the DVP3 has an internal switch that allows you to do so
Fully adjustable rocker tension, for maximum comfort and precision
AUX output for switchable tuner / expression functions (toggled with a switch inside the pedal)

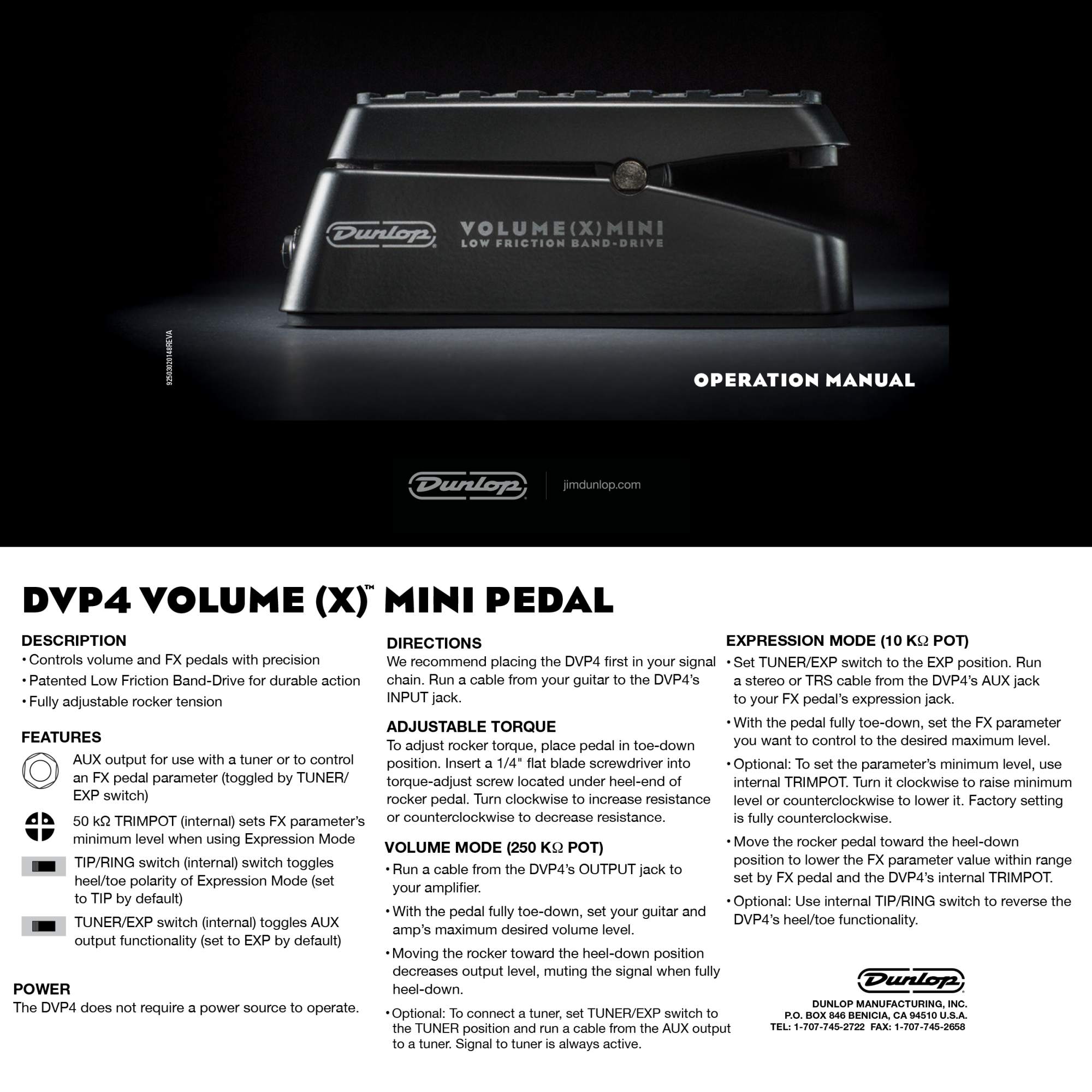

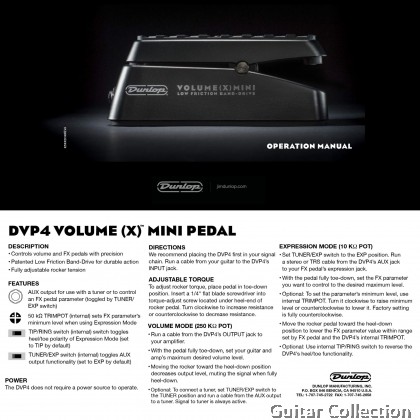

FEATURES

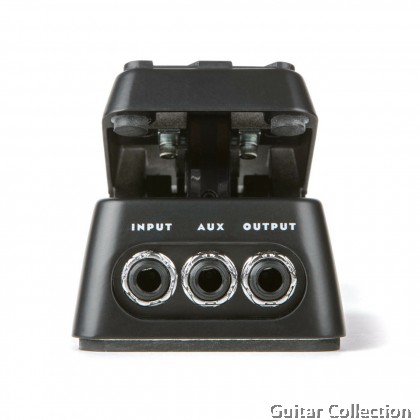

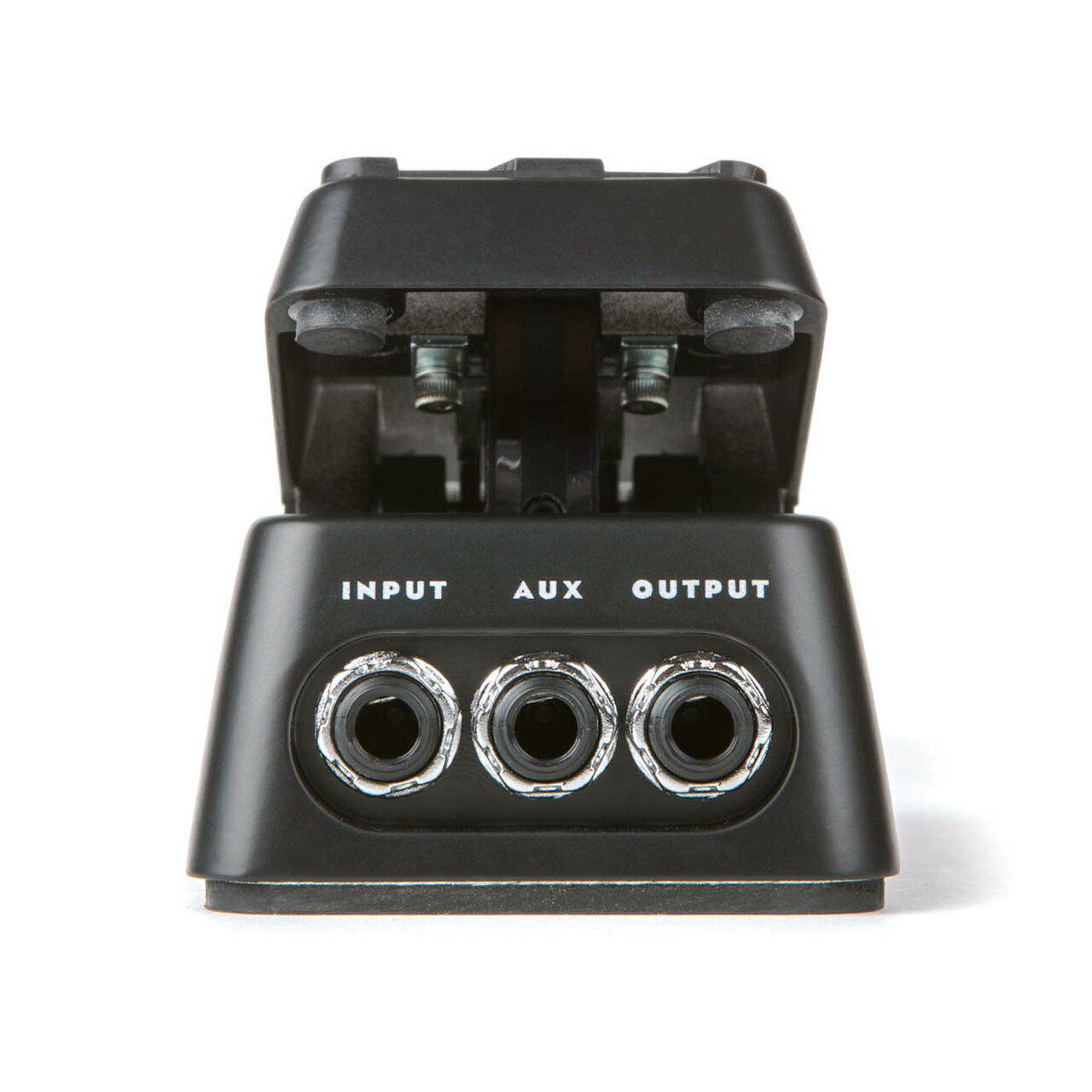

AUX output for use with a tuner or to control an FX pedal parameter (toggled by TUNER/ EXP switch)
50 kΩ TRIMPOT (internal) sets FX parameter’s minimum level when using Expression Mode
TIP/RING switch (internal) switch toggles heel/toe polarity of Expression Mode (set to TIP by default)
TUNER/EXP switch (internal) toggles AUX output functionality (set to EXP by default

VOLUME MODE (250 KΩ POT)

Run a cable from the DVP4’s OUTPUT jack to your amplifier.
With the pedal fully toe-down, set your guitar and amp’s maximum desired volume level.
Moving the rocker toward the heel-down position decreases output level, muting the signal when fully heel-down.
Optional: To connect a tuner, set TUNER/EXP switch to the TUNER position and run a cable from the AUX output to a tuner. Signal to tuner is always active.

EXPRESSION MODE (10 KΩ POT)

Set TUNER/EXP switch to the EXP position. Run a stereo or TRS cable from the DVP4’s AUX jack to your FX pedal’s expression jack.
With the pedal fully toe-down, set the FX parameter you want to control to the desired maximum level.
Optional: To set the parameter’s minimum level, use internal TRIMPOT. Turn it clockwise to raise minimum level or counterclockwise to lower it. Factory setting is fully counterclockwise.
Move the rocker pedal toward the heel-down position to lower the FX parameter value within range set by FX pedal and the DVP4’s internal TRIMPOT.
Optional: Use internal TIP/RING switch to reverse the DVP4’s heel/toe functionality
